Aspartic Protease Inhibitors

Aspartic proteases are a family of protease enzymes that use two highly conserved aspartic acid residues in the active site for catalytic cleavage of their peptide substrates. Perhaps the most extensively studies as drug discovery targets are Rennin (Chymosin), beta-secratase, the Plasmempsins for the treatment of malaria, and HIV protease. HIV protease is unusual in that it is a homodimer and each of the monomeric units contribute an aspartic acid.

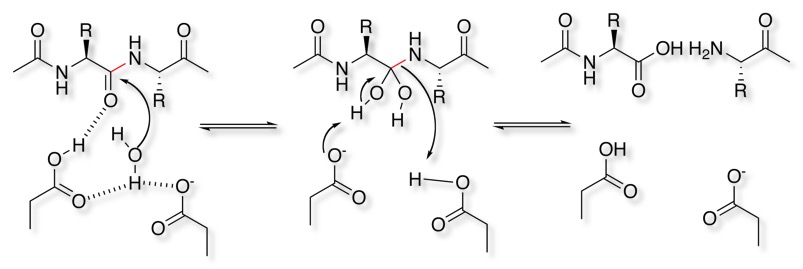

The generally accepted mechanism of action is a general acid-base mechanism involving coordination of a water molecule between the two highly conserved aspartate residues.One aspartate activates the water by abstracting a proton, enabling the water to attack the carbonyl carbon of the substrate scissile bond, generating a tetrahedral oxyanion intermediate. Rearrangement of this intermediate leads to protonation of the scissile amide.


For more information on the mechanism have a look at the MACiE database (Mechanism, Annotation and Classification in Enzymes), HIV-1 retropepsin, PDB entry 1a30 is an example of an aspartyl protease.

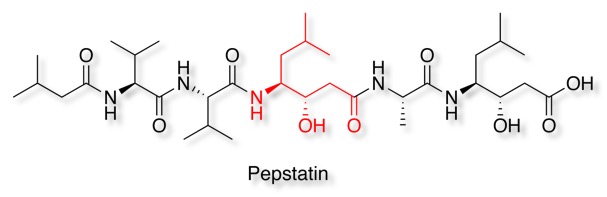

Nearly all known aspartyl proteases are inhibited by pepstatin a naturally occurring hexa-peptide containing the unusual amino acid statine (Sta, (3S,4S)-4-amino-3-hydroxy-6-methylheptanoic acid).


The image below shows pepstatin (green) bound into the ative site of an aspartic protease, the hydroxyl group can be seen hydrogen bonding to one of the aspartic acids (yellow) mimicking the tetrahedral transition state of the reaction. The protein surface is coloured by charge (red positive, blue negative).

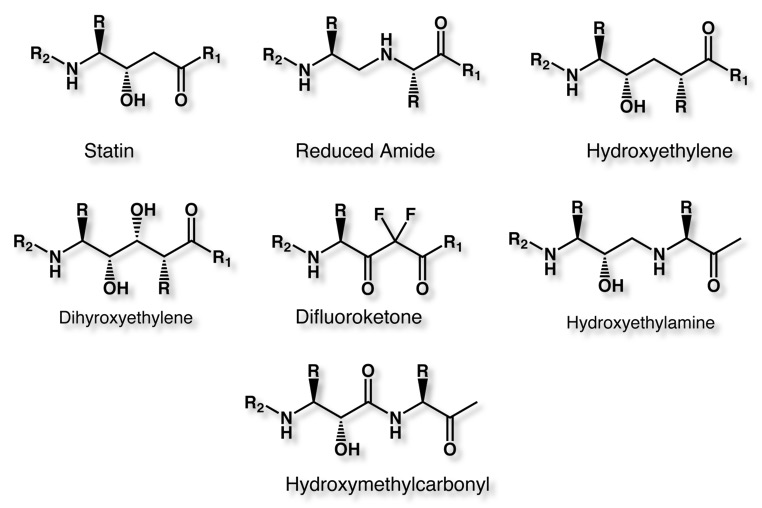

The statin motif has been used to design a range of inhibitors based on the idea of a non-hydrolysable mimic of the transition state formed during amide hydrolysis.

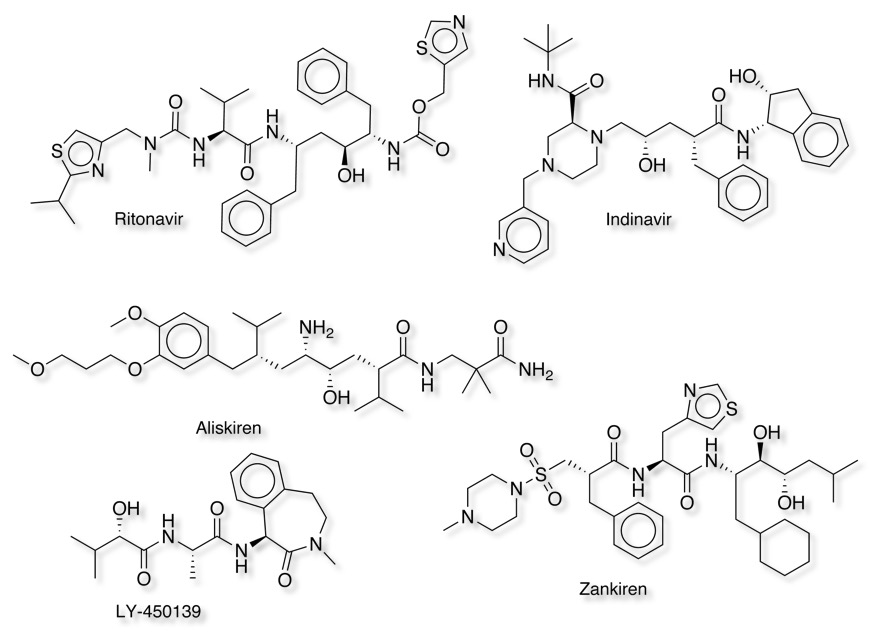

A number of these ideas have been developed into potent inhibitors, these include Ritonavir and Indinavir inhibitors of HIV-1 protease, the rennin inhibitors Zankiren and Aliskiren and the BACE inhibitor LY-450139.

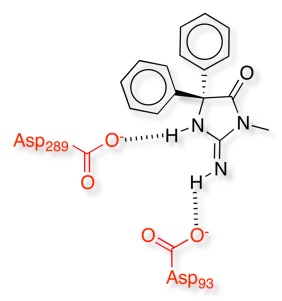

Beta Secretase (BACE-1) is a potential target for the treatment of Alzheimer’s Disease, the gene encoding BACE causing early-onset, familial Alzheimer's disease. BACE-1 is involved in the cleavage of the amyloid precursor protein (APP). Inhibitors of BACE-1 have now been identified, many derived from fragment-based screening. Whilst many of the inhibitors contain the motifs described above, as might be expected for an enzyme that contains two aspartic acids in the active site many of the inhibitors contain basic amidines or guanidines. However these charged and extremely polar structural groups have poor pharmaceutical properties and have this been modified to form cyclic and/or acyl analogues to improve their properties.

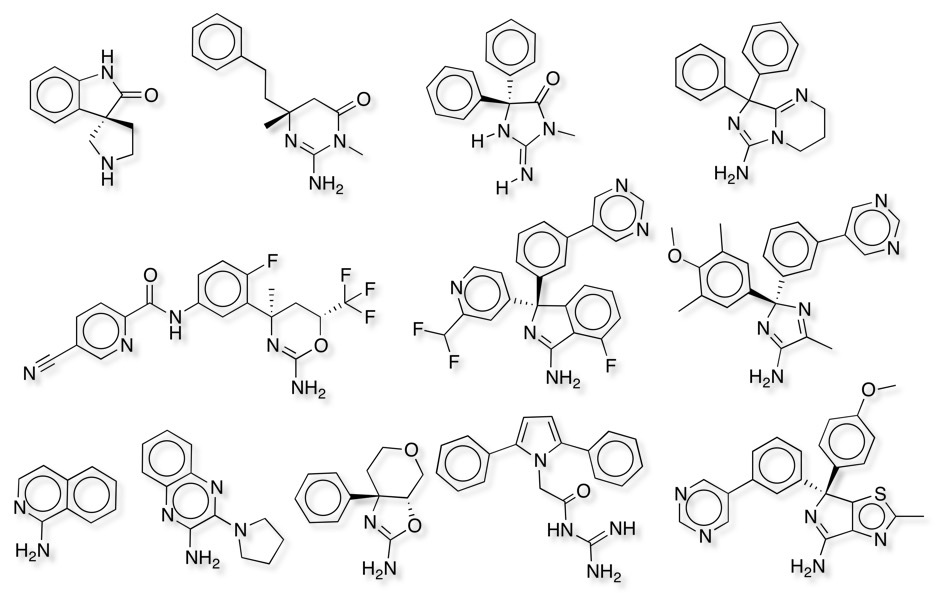

A huge variety of different structural motifs have been identified that have a similar pharmacophore a number of which are shown below, all these structures have been taken from the PDB and the crystal structure show the expected interactions with the active site Asp.


Updated 6 May 2014
